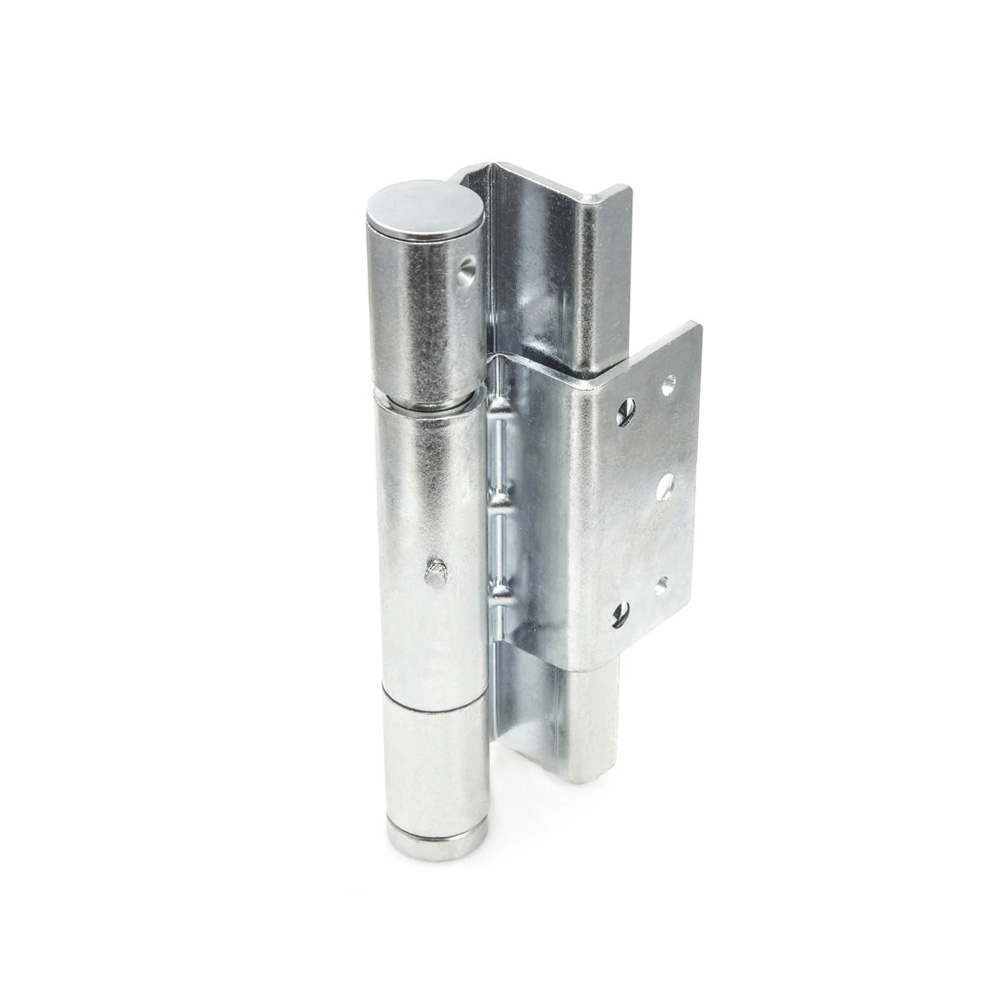

Fire door hinge model 2

Material:

• handle: steel, zinc plated;
• base: steel, zinc plated.

Characteristics:

• *1: gravity head of closed door;
• *2: gravity head of open door;
• *3: the maximum angle;
• *4: closed position;
• *5: open position;
• bearing hinge causes automatic door closure and lifting the door while opening;
• the set of hinges is BS10.2807.1600/.1610 + BS10.2807.1600/.1610 or twice BS10.2807.1620;
• type 1: right version;
• type 2: left version;
• left version is the mirror image of the right version.
